High Precision Counting Packaging Machine Small Parts Vibrating Plate

Product Categories
Dongguan Changsheng Packaging Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

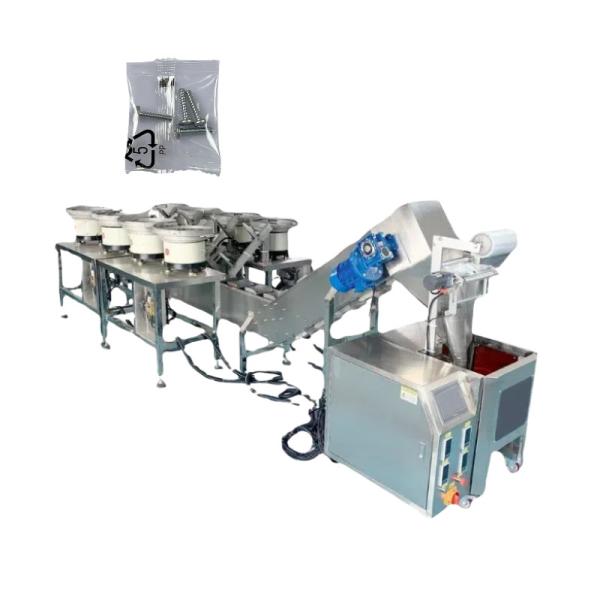

High Precision Counting Packaging Machine Small Parts Vibrating Plate

Brand Name : CS

Model Number : CS

Certification : CE

Place of Origin : Guangdong,China

MOQ : 1

Price : Price negotiable

Payment Terms : T/T

Supply Ability : 100 units per month

Delivery Time : Delivery date negotiable

Packaging Details : Export wooden box packaging

packaging type : CANS, Bottles, Barrel, Other

packaging material : Plastic, paper, metal, Glass, Wood, Other

Voltage : 220V,50-60HZ

filling material : Other

application : Food, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

automatic grade : Automatic

warranty : 1 years

filling accuracy : 0.5-1%

Weight (KG) : 450

driven type : Electric

Contact Now

High-Precision, High-Flexibility Small Parts Vibrating Plate Counting Packaging Machine

The vibration plate screw packaging machine is an intelligent device that integrates automatic sorting, counting and packaging. It is widely used in electronics, automobiles, furniture, hardware and other industries to achieve efficient and automated packaging of small parts such as screws and nuts.

Fully automated and efficient operation
Replacing labor: A single device can replace 8-10 workers, saving about 480,000-600,000 yuan in labor costs per year.
High speed and stability: Using electromagnetic vibration sorting technology, it can process 300-1500 screws per minute (depending on the specifications), and is suitable for special screws with a length-to-diameter ratio of > 3.


Packaging form: three-side sealing or back sealing bag making, supporting composite film, PE film and other materials, and the bag making size can be adjusted (such as 20-120mm long and 50-85mm wide).
Speed ​​and efficiency: The packaging speed of a single plate can reach 30-70 bags/minute, and multi-plate equipment (such as eight-plate models) can simultaneously process screws of various specifications, increasing production capacity by 3-5 times.

Technical Parameters

Model
CS
Filling Range
10-2000g (Customizable)
Filling Speed
120 pcs/min
Measurement accuracy
±0.3-1.5%
Filling head
10 scales*one head,can be customized
Power
220V, 50Hz, 1 KW
Working pressure
0.6-0.8MPa
Weight
400kg
Size
L4002*W2694*H2250(mm)
