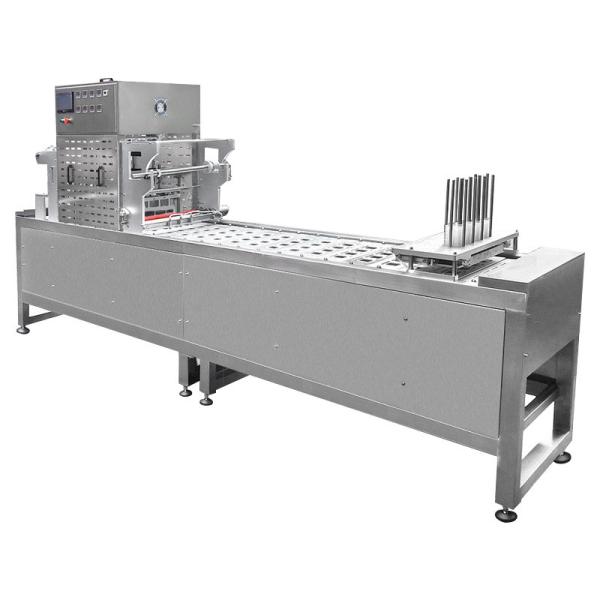

Multi Function Premade Vegetables Food Filling Sealing And Packaging Machines

Brand Name : CS

Model Number : CS

Certification : CE

Place of Origin : Guangdong,China

MOQ : 1

Price : Price negotiable

Payment Terms : T/T

Supply Ability : 100 units per month

Delivery Time : Delivery date negotiable

Packaging Details : Export wooden box packaging

packaging type : aluminum cups bowls boxes trays

packaging material : Plastic, paper, metal, Aluminium foil tray cup box

Voltage : 220V 380V

filling material : Beer, Other, Milk, Water, Oil, Juice, Powder

pplication : Food, Beverage

automatic grade : Automatic

warranty : 1 Year

filling accuracy : ±0.1

driven type : Electric

dimension(l*w*h) : 3300*1400*2000

Contact Now

Multi-Function Premade Vegetables Food Aluminum Foil Cup Tray Box Filling Sealing and Packaging Machines for Sale

The multi-station aluminum foil sealing machine is an efficient packaging equipment, mainly used for aluminum foil sealing processes in the food, medicine, cosmetics, daily necessities and other industries.
1. Equipment function
Multi-station design: usually equipped with 2-8 independent stations, supporting aluminum foil sealing of multiple containers at the same time
Fully automated process: the entire process from container positioning, aluminum foil conveying, hot pressing sealing to finished product discharge is automatically completed
Intelligent temperature control system: can accurately control the sealing temperature (usually 50-250℃ adjustable), adapting to different materials of aluminum foil
2. Core advantages
Efficient production capacity: the production capacity of a single device can reach 60-200 bottles/minute (depending on the model)
Strong compatibility: supports a variety of containers such as round, square, and special-shaped, and the bottle diameter range is usually 5-150mm
Reliable sealing: using electromagnetic induction heating technology, the sealing strength can reach 1.5-3.0MPa
Low energy consumption design: equipped with energy-saving heating modules, saving more than 30% energy compared to traditional equipment

Techinical Parameters
Model
CS-GF305-2
CS-GF305-4
CS-GF305-6
CS-GF305-8
Power
3.5KW
5KW
6KW
7KW
Voltage
220/380V/50/60HZ
220/380V/50/60HZ
220/380V/50/60HZ
220/380V/50/60HZ
Filling pump
2
4
6
8
Filling accuracy
99%
99%
99%
99%
Working speed
1600/h
3200/h
4800/h
6400/H
Air consumption
0.6 m³/min
0.8 m³/min
1 m³/min
1 m³/min
Machine size
3300*600*2000
3300*800*2000
3300*1150*2000
3300*1400*2000
Weight
900KG
1100kg
1400kg
1600kg
